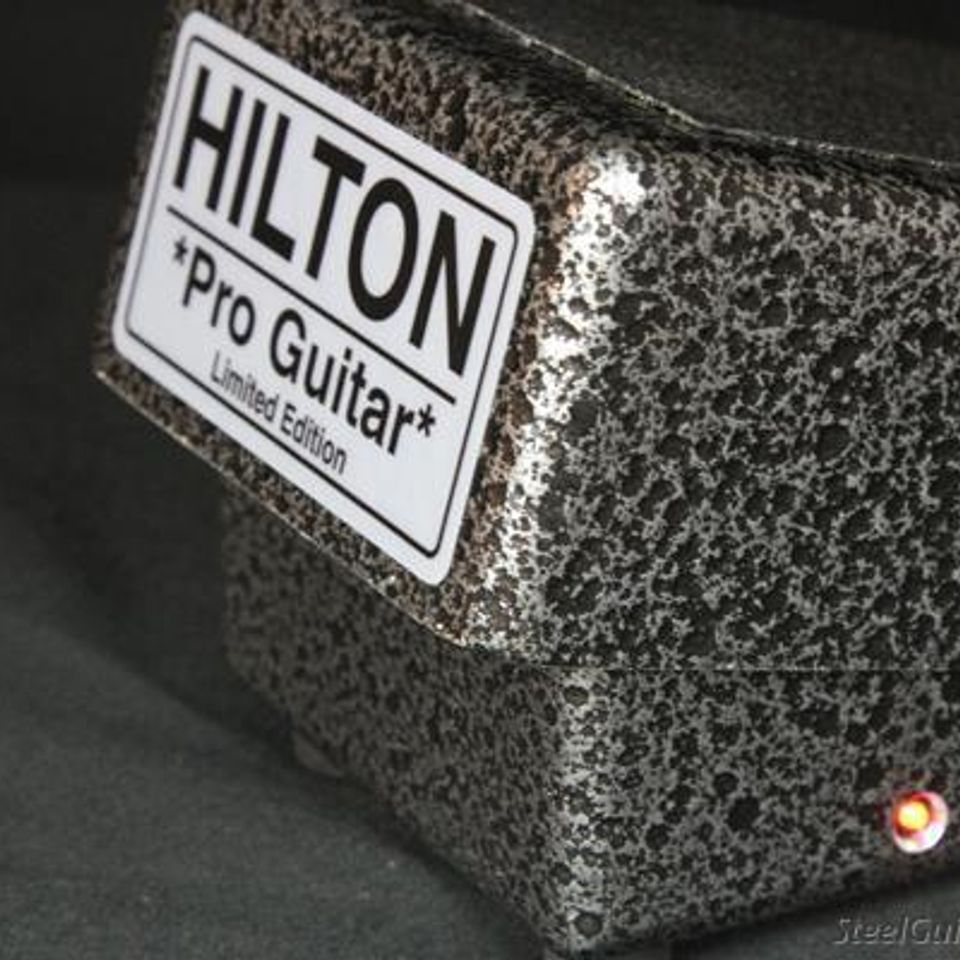

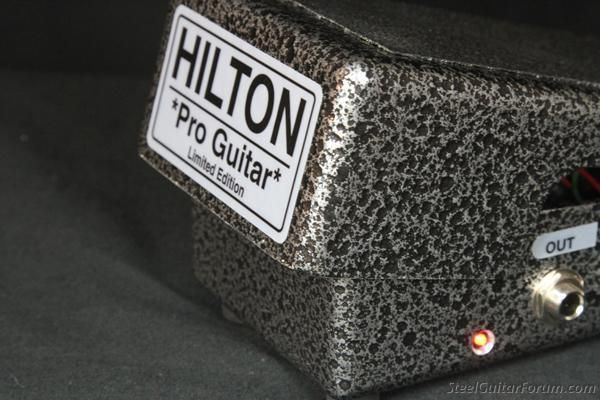

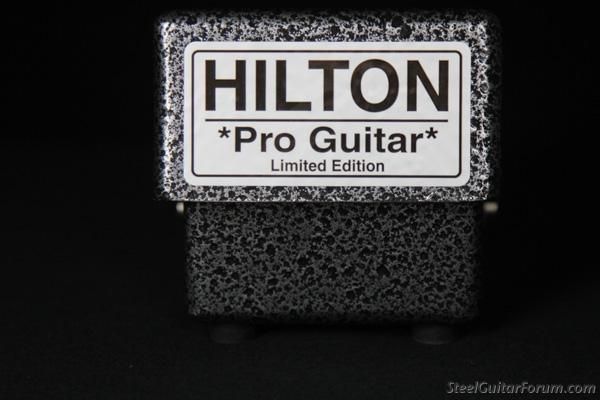

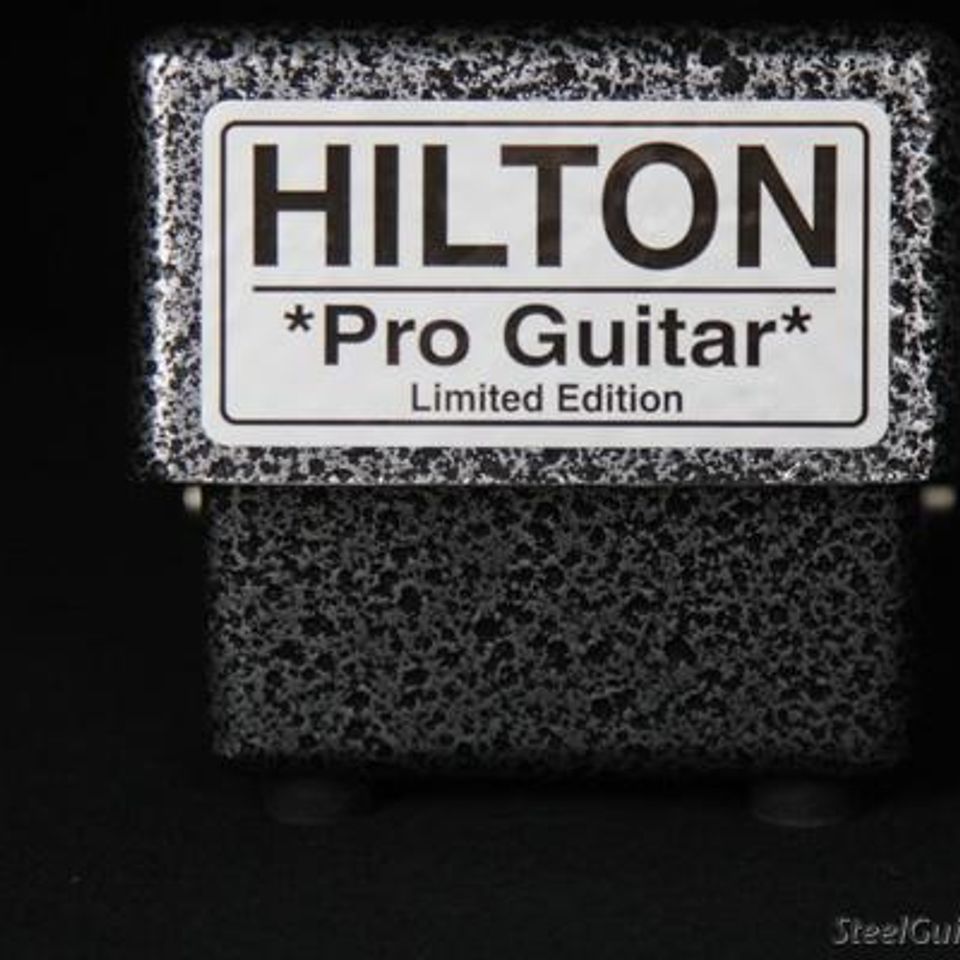

Designed for today's guitar player. Designed for use with, or without, a pedal effects board. Comes with it's own power supply, or easily powered with any pedal board power supply.

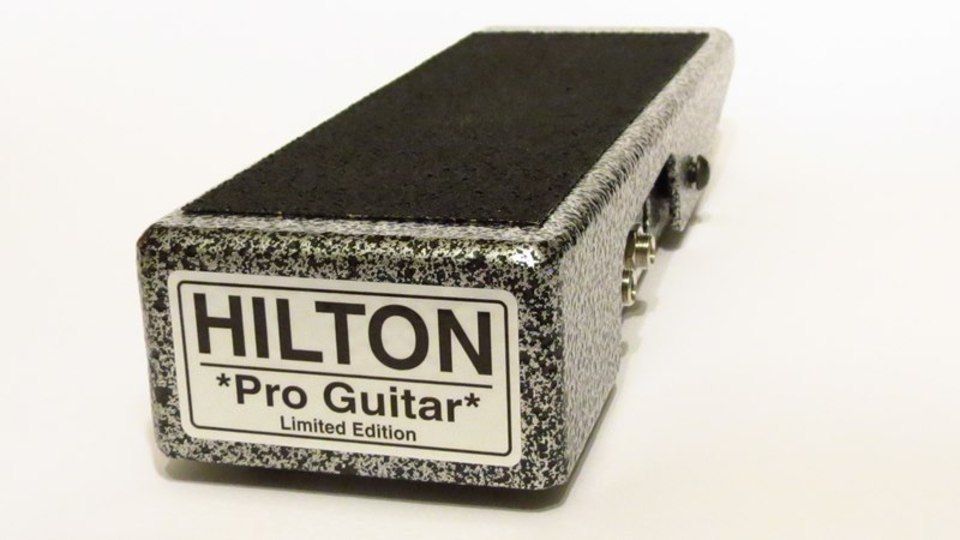

Here are the  measurements of the Pro Guitar pedal:  Length 10 ¾ inches, width 3 ¾ inches. Hinge point from the front 6 5/8 inches.  Height in front, off the floor, when pedal volume is wide open 2 ¼ inches.  Height in front, off the floor, when pedal volume is in off position 3 ¾ inches.  Height in rear, off the floor, in the wide open volume position 1 5/8inches.  Height in rear, off the floor, in the off  volume position 7/8 inch.  Height in middle, off the floor, in the wide open position, and in off position 2, and  2 5/8 inches. All measurements approximate.

1. Friction adjustable clutch with Allen wrench. Up and down stiffness adjustment.
2. Negative tip 9 volt power supply, matches most guitar effect voltages. With a hookup cord from your pedal-board manufacturer, you can power the guitar pedal direct without using Hilton's power transformer.

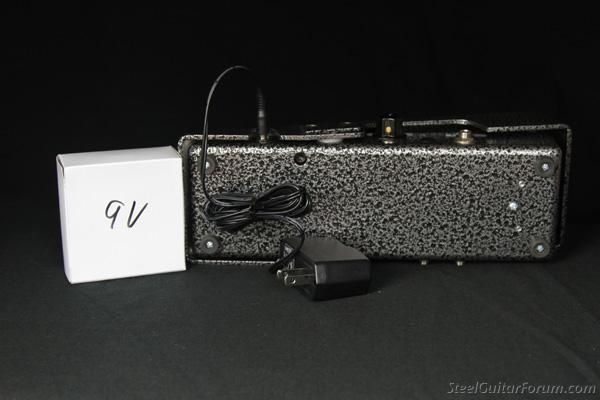

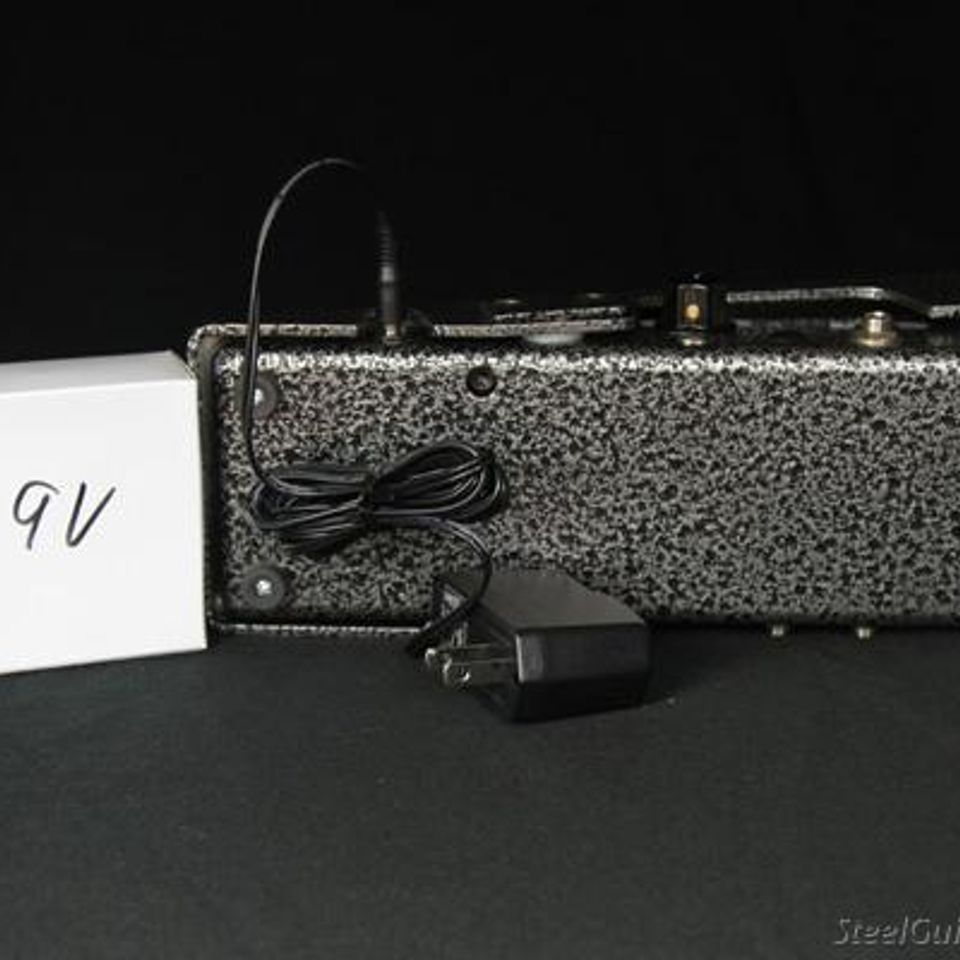

3. Pedal comes with a 9 volt power supply.

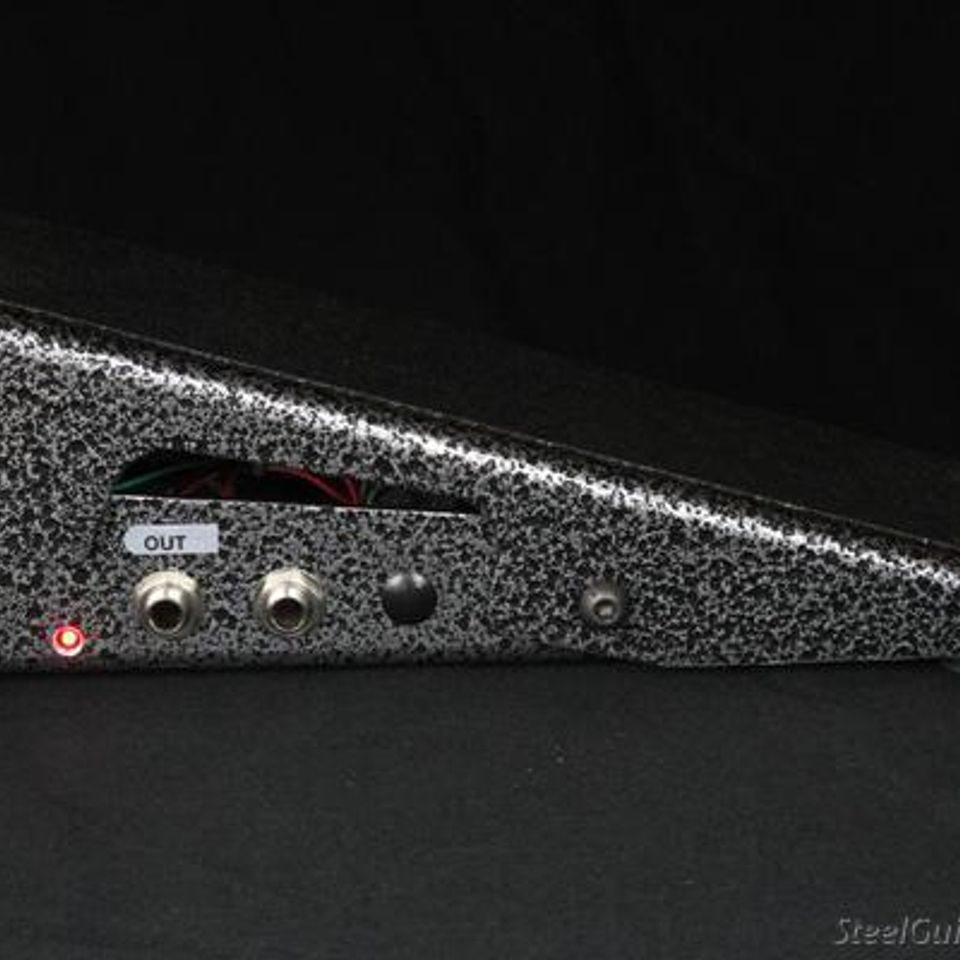

4. Guitar Pro Pedal comes equipped with a dedicated tuner output.
5. Best for pedal boards.
6. Best for standing guitarist. With a pedal board or not, most parallel to the floor when pedal is at full on position.
7. Set to be transparent.
8. In production.
9. Dynamic Response - Excellent, best in the industry.

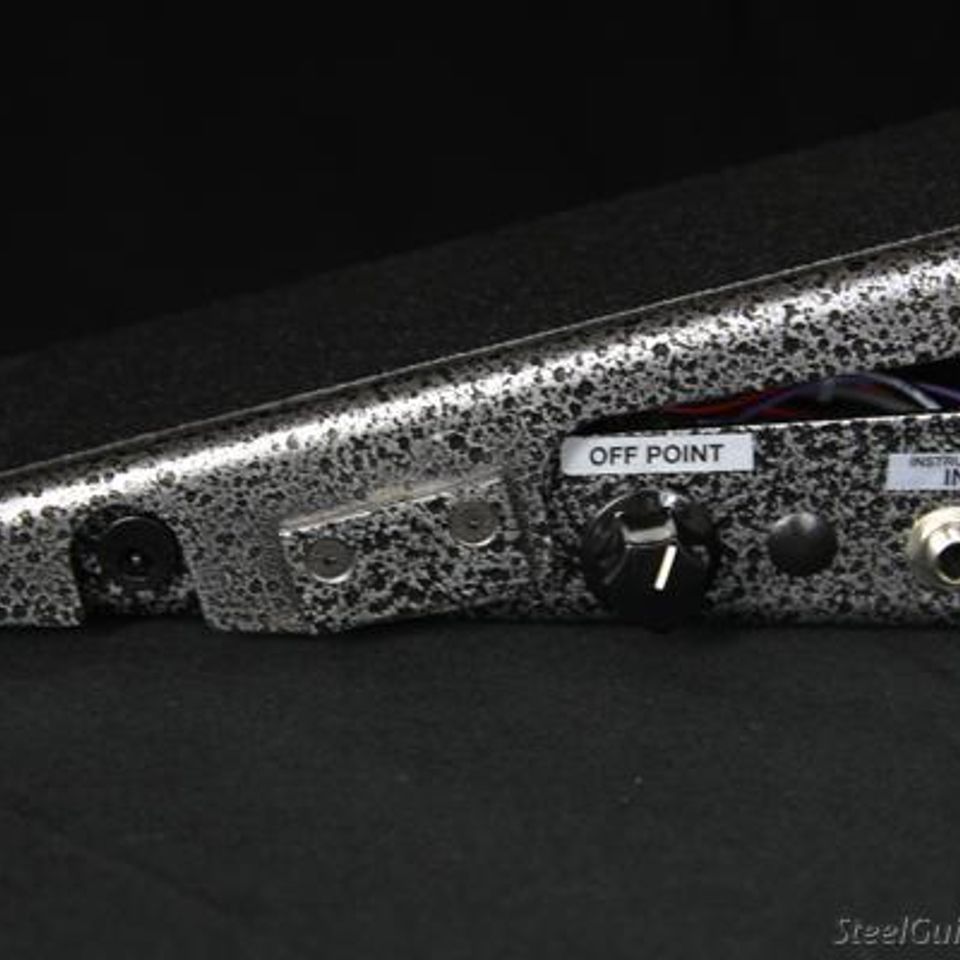

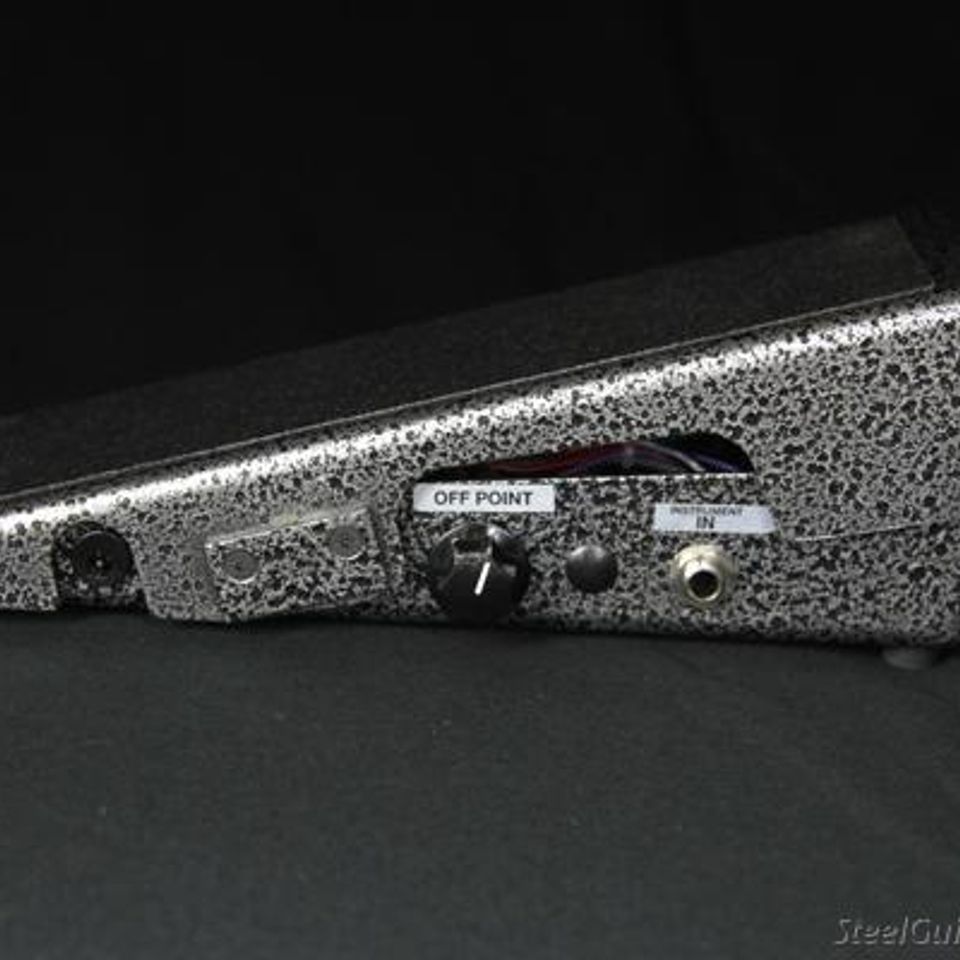

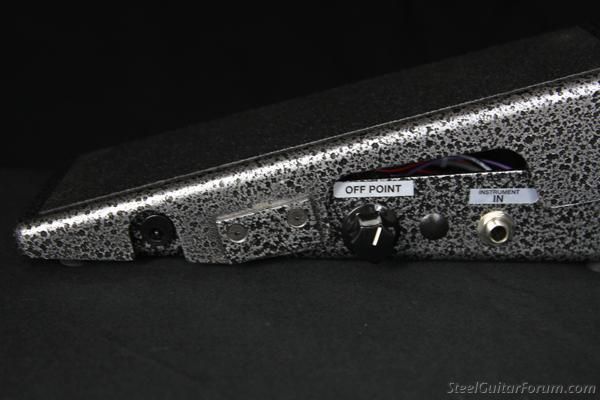

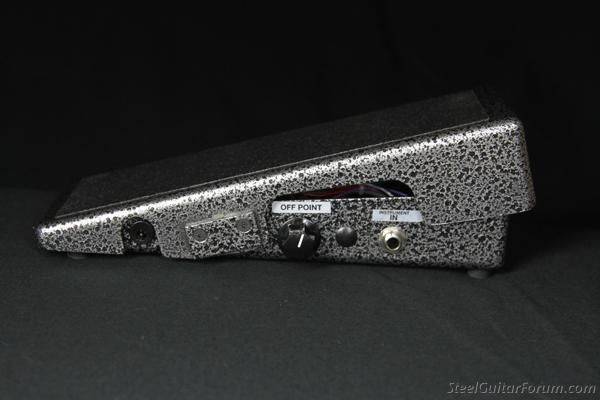

10. Off point control on the side of the pedal.
11. Patented infrared control system.

Here are the  measurements of the standard pedal:  Length 10 ¾ inches, width 3 ¾ inches. Hinge point from the front 6 5/8 inches.  Height in front, off the floor, when pedal volume is wide open 2 ¼ inches.  Height in front, off the floor, when pedal volume is in off position 3 ¾ inches.  Height in rear, off the floor, in the wide open volume position 1 5/8inches.  Height in rear, off the floor, in the off  volume position 7/8 inch.  Height in middle, off the floor, in the wide open position, and in off position 2, and  2 5/8 inches. All measurements approximate.

1. No up and down stiffness adjustment
2. 24 volt positive tip power supply.
3. Will not work without the Hilton Power Transformer
4. Comes without tuner output.
5. Guitar cords In and out on the right side.
6. Smooth operation
7. Set to be transparent.
8. In production
9. Dynamic Response - Excellent, best in the industry.
10. Off point control on bottom of the pedal.
11. Patented infrared control system.

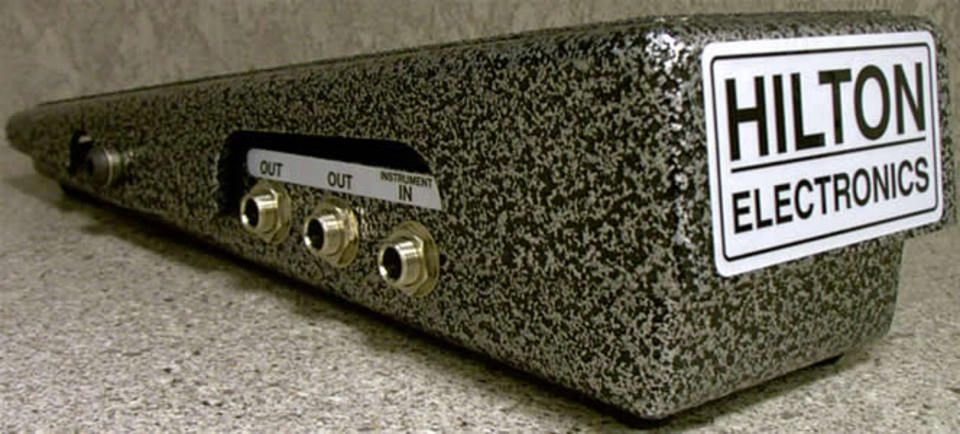

Here are the measurements of the low profile pedal: Length 10 1/2 inches, width 3 5/8 inches. Hinge point from the front 7 1/2 inches.  Height in front, off the floor, when pedal volume is wide open 2 1/4 inches.  Height in front, off the floor, when pedal volume is in off position 3 3/4 inches.  Height in rear, off the floor, in the wide open volume position 1 1/8 inches.  Height in rear, off the floor, in the off volume position 5/8 inches.  Height in middle,off the floor, in the wide open position, and in off position 1 5/8 and 2 3/8 inches. All measurements approximate.
